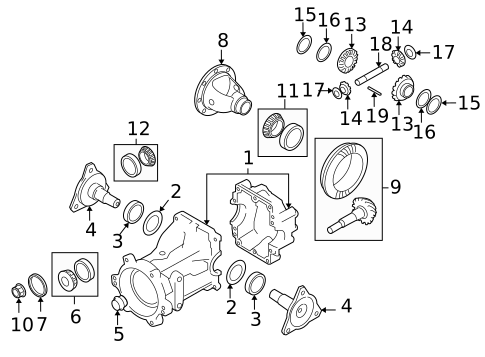

Axle & Differential for 2009 Suzuki SX4
No.
Part # / Description / Price
Price
2
Shim
Suzuki
Suzuki Positions: Right
Description: With awd, differential assembly, 2.55. With awd, differential components, #2, 2.55.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 2.60. With awd, differential components, #2, 2.60.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 2.65. With awd, differential components, #2, 2.65.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 2.70. With awd, differential components, #2, 2.70.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 0.45. With awd, differential components, #2, 0.45.
2
Shim Suzuki
Suzuki Positions: Right
Description: With awd, differential assembly, 2.50. With awd, differential components, #2, 2.50.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 2.30. With awd, differential components, #2, 2.30.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 2.35. With awd, differential components, #2, 2.35.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 2.40. With awd, differential components, #2, 2.40.
2
Shim Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly, 2.45. With awd, differential components, #2, 2.45.
3
$25.71
4
$191.61
5
Pinion Spacer Suzuki
Suzuki Description: SX4. With awd, differential assembly. Kizashi. With awd, differential components.
6
Bearing Suzuki
Suzuki Description: With awd, differential assembly. SX4. Kizashi. With awd, differential components.
7
Pinion Seal Suzuki
Suzuki Description: With awd, differential assembly. SX4. With awd, differential components. Kizashi.
$22.50
$22.50
10
Pinion Gear Nut Suzuki
Suzuki Description: With awd, differential assembly. With awd, differential components.
11
Axle Bearing Suzuki
Suzuki Positions: Left
Description: With awd, differential assembly. SX4. With awd, differential components. Kizashi.
12
Front Pinion Bearing Suzuki
Suzuki Description: With awd, differential assembly. SX4. Samurai. All models. With awd, differential components. Kizashi.
14
Pinion Gear Suzuki
Suzuki Description: With awd, differential assembly, pinion. SX4. With awd, differential components, pinion. Kizashi. Aerio.
15
Gear Washer Suzuki
Suzuki Notes: PARTS: Order by size.
Description: With awd, differential assembly, differential gear, outer. With awd, differential components, #3, 1.00. Side gear. Aerio.
16
Gear Washer Suzuki
Suzuki Description: With awd, differential assembly, differential gear, inner. With awd, differential components, differential gear.
18
Pinion Shaft Suzuki
Suzuki Description: SX4. With awd, differential assembly. Kizashi. With awd, differential components. Aerio.
19
Pinion Shaft Pin Suzuki
Suzuki Description: With awd, differential assembly. With awd, differential components. Aerio.

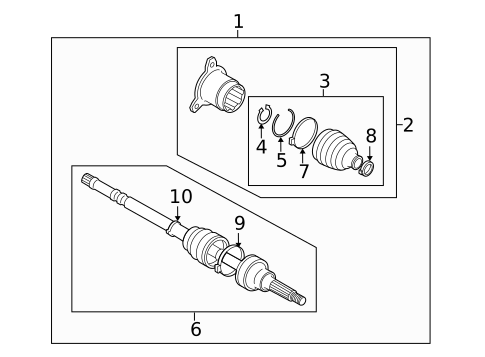

No.
Part # / Description / Price
Price
1
$944.29
1
$1,163.16
2
Inner Joint Assembly Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included with axle assembly.
Description: SX4. With awd, axle assembly.
3
Inner Boot Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with inner joint assembly.
Description: SX4. Inner. With awd, axle assembly.
4
Snap Ring Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with inner boot.
Description: With awd, axle assembly.
5
Retainer Ring Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with inner boot.
Description: With awd, axle assembly.
6
Outer Boot Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with axle assembly.
Description: SX4. Outer. With awd, axle assembly.
$177.77
$177.77
7
Band Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with inner boot.
Description: With awd, axle assembly, inner boot, large.
8
Cv Joint Boot Band Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included with inner boot.
Description: With awd, axle assembly, inner boot, small.
9
Band Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included with outer boot.
Description: With awd, axle assembly, outer boot, large.
10
Band Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with outer boot.
Description: With awd, axle assembly, outer boot, small.

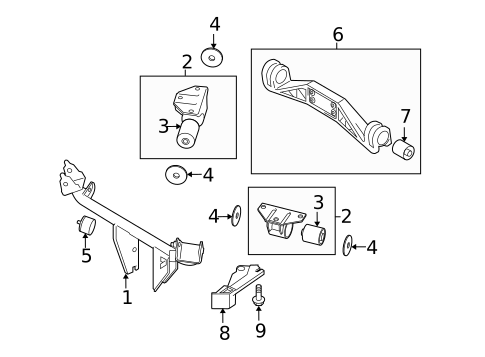

No.
Part # / Description / Price
Price
3
Front Mount Assembly Bushing Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included with front mount assembly.
Description: With awd, differential mounting.
$51.52
$51.52
