2011 Suzuki SX4
Search Bar 4
Home 2011 Suzuki SX4 Sport GTS 2.0L L4 - Gas Pump & Hoses

My Garage

2011 Suzuki SX4

Sport GTS 2.0L L4 - Gas

Change Vehicle

Categories

Steering
Steering
Browse Categories

Pump & Hoses for 2011 Suzuki SX4

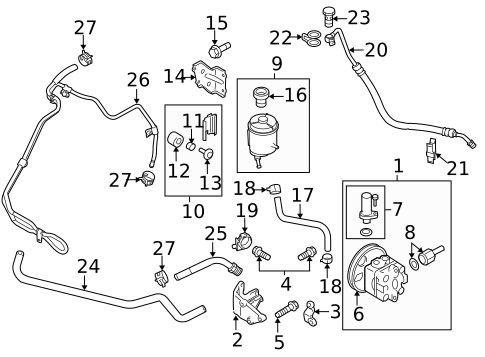

Pump & Hoses for 2011 Suzuki SX4 #0
1
10
11
12
13
14
15
16
17
18
18
19
2
20
21
22
23
24
25
26
27
27
27
3
4
5
7
8
9
No.
Part # / Description / Price
Price
1
4911054L02 - Steering: Power Steering Pump for Suzuki Image
Power Steering Pump
49110-54L02
Suzuki Suzuki
Description: 2010-13. SX4.
$1,094.84
$1,094.84
2
4912054L00 - Steering: Power Steering Pump Bracket for Suzuki Image
Power Steering Pump Bracket
49120-54L00
Suzuki Suzuki
Description: 2010-13.
View Details
View Details
3
4913054L00 - Steering: Power Steering Pump Stay for Suzuki Image
Power Steering Pump Stay
49130-54L00
Suzuki Suzuki
Description: 2010-13.
View Details
View Details
4
15500820A - Steering: Power Steering Pump Bolt for Suzuki Image
Stabilizer Bar Bolt
01550-0820A
Suzuki Suzuki
Description: 2010-13, #1. Fwd. 1.8L. Awd.
View Details
View Details
5
15500830A - Steering: Power Steering Pump Bolt for Suzuki Image
Power Steering Pump Bolt
01550-0830A
Suzuki Suzuki
Description: 2010-13, #2. #3, 2.4L. 2.0L. 2.7L. 2007-09. 2.5L.
$5.51
$5.51
7
4911280J00 - Steering: Connector Tube for Suzuki Image
Connector Tube
49112-80J00
Suzuki Suzuki
Notes: PARTS: Part included with power steering pump.
Description: 2010-13. 2007-09.
View Details
View Details
8
4911380J00 - Steering: Terminal for Suzuki Image
Terminal
49113-80J00
Suzuki Suzuki
Notes: PARTS: Part included with power steering pump.
Description: 2010-13. 2007-09.
$103.87
$103.87
9
4914054L01 - Steering: Reservoir for Suzuki Image
Reservoir
49140-54L01
Suzuki Suzuki
Description: 2010-13. SX4.
View Details
View Details
10
4915060G00 - Steering: Reservoir Mount Bracket for Suzuki Image
Reservoir Mount Bracket
49150-60G00
Suzuki Suzuki
Description: 2010-13. 2003-07. 2007-09.
View Details
View Details
11
918006038 - Steering: Reservoir Spacer for Suzuki Image
Reservoir Spacer
09180-06038
Suzuki Suzuki
Notes: PARTS: Part included with mount bracket.
Description: 2010-13. 2007-09.
View Details
View Details
12
932008501 - Steering: Reservoir Cushion for Suzuki Image
Reservoir Cushion
09320-08501
Suzuki Suzuki
Notes: PARTS: Part included with mount bracket.
Description: 2010-13. 2007-09.
View Details
View Details
13
913606133 - Steering: Reservoir Bolt for Suzuki Image
Washer Reservoir Bolt
09136-06133
Suzuki Suzuki
Description: 2010-13. 1999-03. 2001-03. 2007-09. 2004-06. 2004-05.
View Details
View Details
14
4915280J00 - Steering: Reservoir Support Bracket for Suzuki Image
Support Bracket
49152-80J00
Suzuki Suzuki
Description: 2010-13. 2007-09.
View Details
View Details
15
21620612A - Steering: Reservoir Screw for Suzuki Image
Wiper Motor Assembly Screw
02162-0612A
Suzuki Suzuki
$2.87
$2.87
16
4914254G00 - Steering: Reservoir Cap for Suzuki Image
Reservoir Cap
49142-54G00
Suzuki Suzuki
Notes: PARTS: Part included with reservoir.
Description: 2010-13. 2007-09.
View Details
View Details
17
4922254L00 - Steering: Suction Hose for Suzuki Image
Suction Hose
4922254L00
Suzuki Suzuki
Description: SX4. 2010-13.
View Details
View Details
18
940120405 - Steering: Suction Hose Clamp for Suzuki Image
Suction Hose Clamp
09401-20405
Suzuki Suzuki
Description: 2010-13. 2.0L. 1.6L. 2007-09. 2.5L.
$6.21
$6.21
19
940327301 - Steering: Suction Hose Clip for Suzuki Image
Suction Hose Clip
09403-27301
Suzuki Suzuki
Description: 2010-13.
View Details
View Details
20
4921054L00 - Steering: Pressure Hose for Suzuki Image
Pressure Hose
49210-54L00
Suzuki Suzuki
Description: SX4. 2010-13.
View Details
View Details
21
940800176 - Steering: Pressure Hose Clip for Suzuki Image
Pressure Hose Clip
09408-00176
Suzuki Suzuki
Description: 2010-13. 2007-09.
View Details
View Details
22
4921163G03 - Steering: Pressure Hose Gasket for Suzuki Image
Pressure Hose Gasket
49211-63G03
Suzuki Suzuki
Description: At pump. 2010-13.
$14.53
$14.53
23
936016003 - Steering: Pressure Hose Union for Suzuki Image
Pressure Hose Bolt
09360-16003
Suzuki Suzuki
Description: 2010-13. 2.0L, at pump. 1.6L.
$19.83
$19.83
24
4922354L00 - Steering: Return Hose for Suzuki Image
Return Hose
49223-54L00
Suzuki Suzuki
Description: SX4. 2010-13.
View Details
View Details
25
4921280J00 - Steering: Return Pipe for Suzuki Image
Return Pipe
49212-80J00
Suzuki Suzuki
Description: 2010-13. 2007-09.
$47.97
$47.97
26
4922754L00 - Steering: Cooler Pipe for Suzuki Image
Cooler Pipe
49227-54L00
Suzuki Suzuki
Description: 2010-13.
$349.68
$349.68
27
940116407 - Steering: Cooler Pipe Clip for Suzuki Image
Cooler Pipe Clip
09401-16407
Suzuki Suzuki
Description: 2010-13. 2007-09.
View Details
View Details
