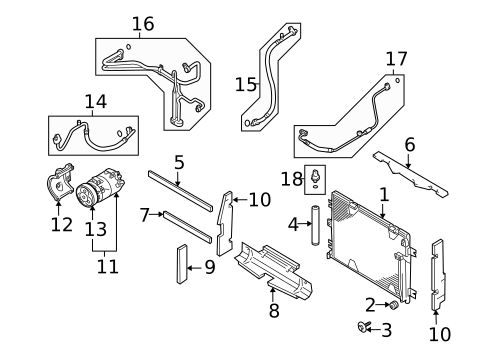

Condenser, Compressor & Lines for 2004 Suzuki XL-7
No.
Part # / Description / Price
Price
2
Condenser Assembly Bushing
Suzuki
Suzuki Notes: PARTS: Part serviced with condenser.
Description: From vin 14155435. Sedan. 2001-02. 2003-06. From vin 4105566 to 14155434.
3
Condenser Bolt Suzuki
Suzuki Description: From vin 14155435. 2001-02. 2003-06. From vin 4105566 to 14155434.
13
Clutch & Pulley Suzuki
Suzuki Notes: PARTS: Part included with compressor assembly.
Description: XL-7. 2003-06.
No.
Part # / Description / Price
Price
1
2
Evaporator Assembly Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
3
Evaporator Core Suzuki
Suzuki Notes: PARTS: Part included with evaporator core.
Description: XL-7. 2003-06, front. For Primary HVAC. 2003-05. Grand Vitara.
4
Evaporator Core Grommet Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
5
Upper Case Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, without climate control.
5
Upper Case Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, with climate control. 2003-05.
6
Lower Case Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
7
Duct Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
8
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, vent. 2003-05, vent.
9
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, defroster. 2003-05, defroster.
10
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, foot. 2003-05, foot.
11
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, air mixture. 2003-05, air mixture.
12
Door Actuator Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: Grand Vitara, XL-7. Mode actuator. 2003-06, front, mode. 2003-05, mode.
13
Door Actuator Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: Grand Vitara, XL-7. Temp actuator. 2003-06, front, temp. 2003-05, temp.
14
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, main mold. 2003-05, main mold.
15
Lever Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, vent. 2003-05, vent.
15
Lever Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, vent. 2003-05, vent.
16
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, defroster, outer. 2003-05, defroster, outer.
17
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, defroster, inner. 2003-05, defroster, inner.
18
Lever Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, foot. 2003-05, foot.
18
Lever Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, foot. 2003-05, foot.
19
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, lower foot. 2003-05, lower foot.
20
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, air mixture main. 2003-05, air mixture main.
24
Expansion Valve Suzuki
Suzuki Notes: PARTS: Part included with evaporator core.
Description: Grand Vitara, XL-7. 2003-06, front. 2003-05. For Primary HVAC.
25
HVAC Evaporator Temperature Switch Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: XL-7. Front. 2003-05. Grand Vitara.
26
Heater Core Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: XL-7. 2003-06, front. Grand Vitara. 2003-05.
27
Temp Sensor Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
28
Side Cover Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
29
Side Cover Seal Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
No.
Part # / Description / Price
Price
No.
Part # / Description / Price
Price
1
Ignition Coil Suzuki
Suzuki Description: Grand Vitara, XL-7. Aerio. Vitara. 2.0l. Esteem. 1.8l. Sidekick sport. Vitara. 2.5l.
5
Sensor Suzuki
Suzuki Description: Grand Vitara, XL-7. Aerio. 2.0L. Sidekick, Sidekick sport. Esteem. 1.8l. 1.8L, 1999-02, crank position. 1.8L, position sensor. SX4. 2.5L.
$245.97
$245.97
Related Parts
Part # / Description / Price
Price
A/C Receiver Drier Suzuki
Suzuki Description: Grand Vitara. SX4. Vendor:suzuki. Kizashi. From vin 14155435. 2001-02. XL-7. Part of condenser. From vin 4105566 to 14155434. Aerio.
