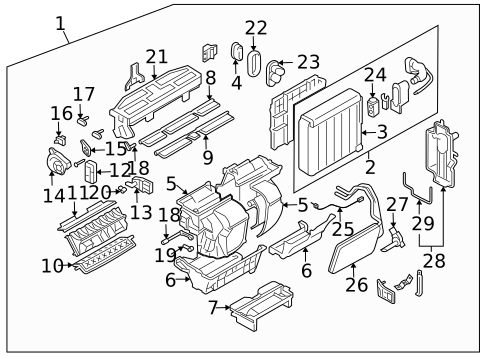

HVAC Case for 2004 Suzuki XL-7
No.
Part # / Description / Price
Price
1
2
Evaporator Assembly
Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
3
Evaporator Core Suzuki
Suzuki Notes: PARTS: Part included with evaporator core.
Description: XL-7. 2003-06, front. For Primary HVAC. 2003-05. Grand Vitara.
4
Evaporator Core Grommet Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
5
Upper Case Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, without climate control.
5
Upper Case Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, with climate control. 2003-05.
6
Lower Case Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
7
Duct Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
8
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, vent. 2003-05, vent.
9
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, defroster. 2003-05, defroster.
10
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, foot. 2003-05, foot.
11
Door Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, air mixture. 2003-05, air mixture.
12
Door Actuator Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: Grand Vitara, XL-7. Mode actuator. 2003-06, front, mode. 2003-05, mode.
13
Door Actuator Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: Grand Vitara, XL-7. Temp actuator. 2003-06, front, temp. 2003-05, temp.
14
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, main mold. 2003-05, main mold.
15
Lever Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, vent. 2003-05, vent.
15
Lever Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, vent. 2003-05, vent.
16
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, defroster, outer. 2003-05, defroster, outer.
17
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, defroster, inner. 2003-05, defroster, inner.
18
Lever Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, foot. 2003-05, foot.
18
Lever Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, foot. 2003-05, foot.
19
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, lower foot. 2003-05, lower foot.
20
Lever Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front, air mixture main. 2003-05, air mixture main.
24
Expansion Valve Suzuki
Suzuki Notes: PARTS: Part included with evaporator core.
Description: Grand Vitara, XL-7. 2003-06, front. 2003-05. For Primary HVAC.
25
HVAC Evaporator Temperature Switch Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: XL-7. Front. 2003-05. Grand Vitara.
26
Heater Core Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: XL-7. 2003-06, front. Grand Vitara. 2003-05.
27
Temp Sensor Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
28
Side Cover Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
29
Side Cover Seal Suzuki
Suzuki Notes: PARTS: Part included in AC and heater assembly.
Description: 2003-06, front. 2003-05.
No.
Part # / Description / Price
Price

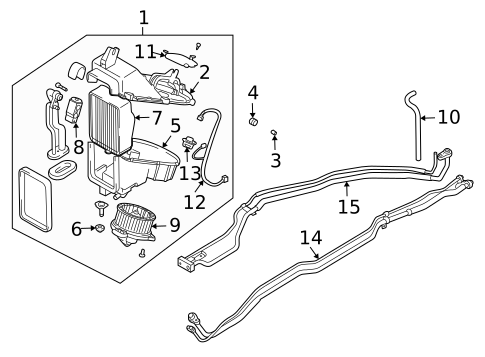

2
Case Assembly Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: XL-7. Upper. 2001-02, rear. 2003-06, rear.
4
Air Cleaner Assembly Spacer Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: 1.6 & 2.0L. 2.4L. 2.7L. 2001-03. 2003-06, rear. 2001-02, rear. 2004-06. 3.2L. 2.5L.
5
Case Assembly Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: XL-7. Lower. 2001-02, rear. 2003-06, rear.
6
Lower Case Bushing Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: 2001-02, rear. 2003-06, rear.
7
Evaporator Core Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: For Auxiliary HVAC. Assembly. XL-7. 2003-06, rear.
8
Expansion Valve Suzuki
Suzuki Notes: PARTS: Part included with evaporator core.
Description: XL-7. 2003-06, rear. For Auxiliary HVAC.
9
Fan & Motor Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: XL-7. 2001-02, rear. 2003-06, rear.
10

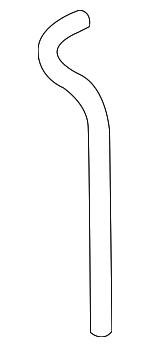

Drain Hose Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: 2001-02, rear. 2003-06, rear.
11
Filter Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: 2001-02, rear. 2003-06, rear.
13
Resistor Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: XL-7. 2001-02, rear. 2003-06, rear.
14
Liquid Line Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: 2003-06, rear, front.
15
Liquid Line Suzuki
Suzuki Notes: PARTS: Part included with evaporator assembly.
Description: 2003-06, rear, rear.
