Fuel System Components for 1996 Suzuki Swift

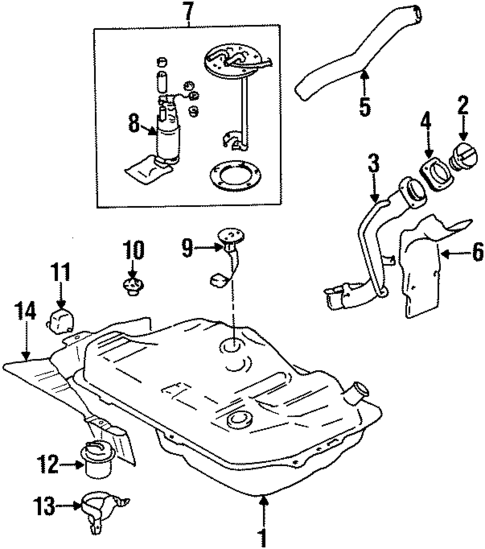

Fuel System Components for 1996 Suzuki Swift #0 Fuel System Components for 1996 Suzuki Swift #1
Fuel System Components for 1996 Suzuki Swift #0
1
1
10
10
11
11
12
12
13
13
14
14
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
No.
Part # / Description / Price
Price
1
8910150G00 - Fuel System: Fuel Tank for Suzuki Image
Fuel Tank
89101-50G00
Suzuki Suzuki
Description: 1995-97. Swift.
View Details
View Details
2
8926050GB0 - Fuel System: Fuel Cap for Suzuki Image
Fuel Cap
89260-50GB0
Suzuki Suzuki
Description: 4 door without sport, canada built. 1998-01. 1995-97.
View Details
View Details
3
8920150G30 - Fuel System: Filler Neck for Suzuki Image
Filler Neck
89201-50G30
Suzuki Suzuki
Description: Swift.
View Details
View Details
4
8928575F00 - Fuel System: Filler Neck Seal for Suzuki Image
Filler Neck Packing
89285-75F00
Suzuki Suzuki
Description: 1.6L, 1995-99. 1.6L, 2000-01, 1.8L. 1995-97. 1996-97 manual trans, all, auto trans, federal. 1998 all.
View Details
View Details
5
8924150G00 - Fuel System: Filler Hose for Suzuki Image
Filler Hose
89241-50G00
Suzuki Suzuki
Description: 1995-97.
View Details
View Details
6
8927150G00 - Fuel System: Protector for Suzuki Image
Connector Hose Protector
89271-50G00
Suzuki Suzuki
Description: 1998-01. 1995-97.
View Details
View Details
7
1510050G00 - Fuel System: Fuel Pump Assembly for Suzuki Image
Fuel Pump Assembly
15100-50G00
Suzuki Suzuki
Description: 1995-97.
View Details
View Details
8
1511050GT0 - Fuel System: Fuel Pump for Suzuki Image
Fuel Pump
15110-50GT0
Suzuki Suzuki
Description: Swift.
View Details
View Details
9
3481050G10 - Fuel System: Gauge for Suzuki Image
Fuel Gauge Sending Unit
34810-50G10
Suzuki Suzuki
Description: 1995-97. Swift.
View Details
View Details
10
8948550G10 - Fuel System: Cut-Off Valve for Suzuki Image
Cut-Off Valve
89485-50G10
Suzuki Suzuki
Description: 1995-97.
View Details
View Details
11
8941150G00 - Fuel System: Vapor Separator for Suzuki Image
Vapor Separator
89411-50G00
Suzuki Suzuki
Description: 1995-97.
View Details
View Details
12
1543050G00 - Fuel System: Fuel Filter for Suzuki Image
Fuel Filter
15430-50G00
Suzuki Suzuki
Description: 1995-97. Swift.
View Details
View Details
13
1542050GT0 - Fuel System: Fuel Filter Bracket for Suzuki Image
Fuel Filter Bracket
15420-50GT0
Suzuki Suzuki
Description: 1995-97.
View Details
View Details
14
8931150G00 - Fuel System: Tank Shield for Suzuki Image
Tank Shield
89311-50G00
Suzuki Suzuki
Description: 1995-97.
View Details
View Details
Fuel System Components for 1996 Suzuki Swift #1
1
1
10
10
11
11
12
12
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
No.
Part # / Description / Price
Price
1
3392052GA0 - Electrical: Efi Module for Suzuki Image
Efi Module
33920-52GA0
Suzuki Suzuki
Description: Manual trans, california.
View Details
View Details
1
3392052GB1 - Electrical: Efi Module for Suzuki Image
Efi Module
33920-52GB1
Suzuki Suzuki
Description: Swift. Auto trans, california.
View Details
View Details
1
3392052GC0 - Electrical: Efi Module for Suzuki Image
Efi Module
33920-52GC0
Suzuki Suzuki
Description: Swift. Manual trans, federal.
View Details
View Details
1
3392052GD1 - Electrical: Efi Module for Suzuki Image
Efi Module
33920-52GD1
Suzuki Suzuki
Description: Swift. Auto trans, federal.
View Details
View Details
2
21620612A - Electrical: Efi Module Screw for Suzuki Image
Wiper Motor Assembly Screw
02162-0612A
Suzuki Suzuki
$2.87
$2.87
3
3395060B11 - Electrical: Resistor for Suzuki Image
Resistor
33950-60B11
Suzuki Suzuki
Description: Sohc. Canada built. 1995-97. Swift.
View Details
View Details
4
3674050G01 - Electrical: Fuse Box for Suzuki Image
Fuse Box
36740-50G01
Suzuki Suzuki
View Details
View Details
5
3886076F01 - Electrical: Relay for Suzuki Image
Relay
38860-76F01
Suzuki Suzuki
$55.34
$55.34
6
912506104 - Electrical: Relay Screw for Suzuki Image
Relay Screw
09125-06104
Suzuki Suzuki
View Details
View Details
7
3673550G00 - Electrical: Relay Bracket for Suzuki Image
Relay Bracket
36735-50G00
Suzuki Suzuki
View Details
View Details
8
9551050G00 - Electrical: Controller for Suzuki Image
AC Programmer
95510-50G00
Suzuki Suzuki
Description: Swift. Ac.
View Details
View Details
8
3888051G10 - Electrical: Controller for Suzuki Image
Trans Controller
38880-51G10
Suzuki Suzuki
Description: Auto trans. Swift.
View Details
View Details
9
9553150G10 - Electrical: Harness for Suzuki Image
Harness
95531-50G10
Suzuki Suzuki
Description: Ac #1.
View Details
View Details
10
9553250G10 - Electrical: Harness for Suzuki Image
Harness
95532-50G10
Suzuki Suzuki
Description: Ac #2.
View Details
View Details
11
9552160E10 - Electrical: Harness for Suzuki Image
On/Off Switch
95521-60E10
Suzuki Suzuki
Description: Ac switch. Swift.
View Details
View Details
12
7443650G00 - Electrical: Harness for Suzuki Image
Harness
74436-50G00
Suzuki Suzuki
Description: Fan switch.
View Details
View Details
