Rear Suspension for 1996 Suzuki Swift

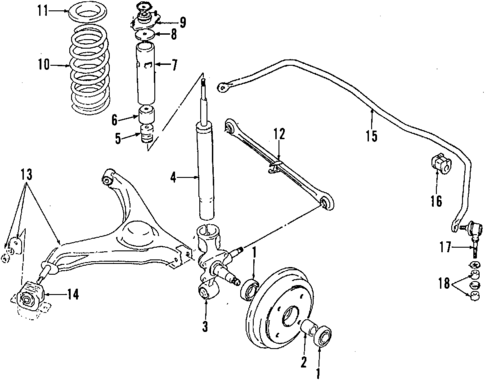

Rear Suspension for 1996 Suzuki Swift #0 Rear Suspension for 1996 Suzuki Swift #1
Rear Suspension for 1996 Suzuki Swift #0
No.
Part # / Description / Price
Price
1
926225061 - Suspension: Rear Wheel Bearing for Suzuki Image
Rear Wheel Bearing
09262-25061
Suzuki Suzuki
Description: Swift. Drum brakes, inner. Without abs.
View Details
View Details
1
926220069 - Suspension: Rear Wheel Bearing for Suzuki Image
Rear Wheel Bearing
09262-20069
Suzuki Suzuki
Description: Swift. Drum brakes, outer. Without abs.
View Details
View Details
1
4340250G11 - Suspension: Rear Wheel Bearing for Suzuki Image
Hub Assembly
43402-50G11
Suzuki Suzuki
Description: Swift. With abs. Hub assembly.
View Details
View Details
2
918021001 - Suspension: Spacer for Suzuki Image
Spacer
09180-21001
Suzuki Suzuki
Description: Swift. Without abs.
View Details
View Details
3
4615050G10 - Suspension: Knuckle for Suzuki Image
Knuckle
46150-50G10
Suzuki Suzuki
Description: Swift. With abs. Left.
View Details
View Details
3
4615050G00 - Suspension: Knuckle for Suzuki Image
Knuckle
46150-50G00
Suzuki Suzuki
Description: Swift. Without abs. Left.
View Details
View Details
3
4611050G00 - Suspension: Knuckle for Suzuki Image
Knuckle
46110-50G00
Suzuki Suzuki
Description: Swift. Without abs. Right.
View Details
View Details
3
4611050G10 - Suspension: Knuckle for Suzuki Image
Knuckle
46110-50G10
Suzuki Suzuki
Description: Swift. With abs. Right.
View Details
View Details
4
4180050G01 - Suspension: Strut for Suzuki Image
Strut
41800-50G01
Suzuki Suzuki
Description: Swift.
View Details
View Details
5
4225150G00 - Suspension: Stopper for Suzuki Image
Stopper
42251-50G00
Suzuki Suzuki
Description: Swift.
View Details
View Details
6
4194060B00 - Suspension: Cap for Suzuki Image
Cap
41940-60B00
Suzuki Suzuki
Description: Swift.
View Details
View Details
7
4193160B00 - Suspension: Dust Shield for Suzuki Image
Dust Shield
41931-60B00
Suzuki Suzuki
Description: Swift.
View Details
View Details
8
4192150G00 - Suspension: Strut Seat for Suzuki Image
Strut Seat
41921-50G00
Suzuki Suzuki
Description: Lower. Swift.
View Details
View Details
9
4191050G00 - Suspension: Strut Mount for Suzuki Image
Strut Mount
41910-50G00
Suzuki Suzuki
Description: Swift.
View Details
View Details
10
4131150G10 - Suspension: Coil Spring for Suzuki Image
Coil Spring
41311-50G10
Suzuki Suzuki
Description: Swift.
View Details
View Details
11
4134150G00 - Suspension: Spring Seat for Suzuki Image
Spring Seat
41341-50G00
Suzuki Suzuki
Description: Swift.
View Details
View Details
12
4630050G00 - Suspension: Lateral Link for Suzuki Image
Control Rod
46300-50G00
Suzuki Suzuki
Description: Swift.
View Details
View Details
13
4620150G01 - Suspension: Lower Control Arm for Suzuki Image
Control Arm
46201-50G01
Suzuki Suzuki
Description: Swift. Right.
View Details
View Details
13
4620250G01 - Suspension: Lower Control Arm for Suzuki Image
Control Arm
46202-50G01
Suzuki Suzuki
Description: Swift. Left.
View Details
View Details
14
4642050G01 - Suspension: Bushings for Suzuki Image
Control Arm Mount
46420-50G01
Suzuki Suzuki
Description: Swift.
View Details
View Details
15
4661150G10 - Suspension: Stabilizer Bar for Suzuki Image
Stabilizer Bar
46611-50G10
Suzuki Suzuki
Description: Swift.
View Details
View Details
16
4664150G50 - Suspension: Bushings for Suzuki Image
Stabilizer Bar Mount Bushing
46641-50G50
Suzuki Suzuki
Description: Swift.
View Details
View Details
17
4663060B01 - Suspension: Link for Suzuki Image
Link
46630-60B01
Suzuki Suzuki
Description: Late type. Swift. Aerio.
View Details
View Details
18
932010024 - Suspension: Link Bushing for Suzuki Image
Stabilizer Link Bushing
09320-10024
Suzuki Suzuki
View Details
View Details

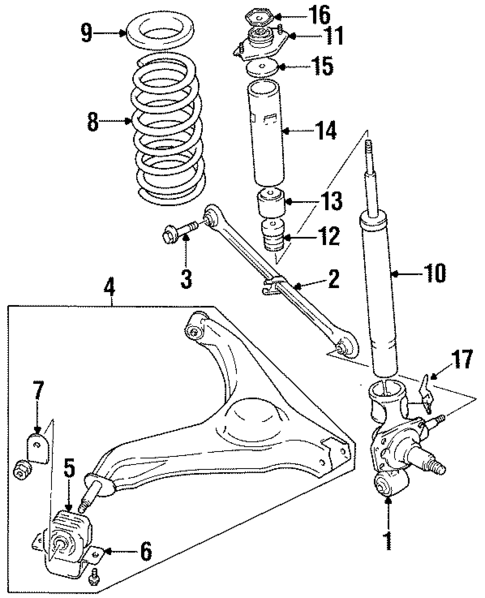

Rear Suspension for 1996 Suzuki Swift #1
1
1
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
No.
Part # / Description / Price
Price
1
4615050G10 - Suspension: Knuckle for Suzuki Image
Knuckle
46150-50G10
Suzuki Suzuki
Positions: Left
Description: Swift. With abs. Left.
View Details
View Details
1
4615050G00 - Suspension: Knuckle for Suzuki Image
Knuckle
46150-50G00
Suzuki Suzuki
Positions: Left
Description: Swift. Without abs. Left.
View Details
View Details
1
4611050G10 - Suspension: Knuckle for Suzuki Image
Knuckle
46110-50G10
Suzuki Suzuki
Positions: Right
Description: Swift. With abs. Right.
View Details
View Details
1
4611050G00 - Suspension: Knuckle for Suzuki Image
Knuckle
46110-50G00
Suzuki Suzuki
Positions: Right
Description: Swift. Without abs. Right.
View Details
View Details
2
4630050G00 - Suspension: Control Rod for Suzuki Image
Control Rod
46300-50G00
Suzuki Suzuki
Positions: Right
Description: Swift.
View Details
View Details
3
4633060E01 - Suspension: Control Rod Bolt for Suzuki Image
Adjust Bolt
46330-60E01
Suzuki Suzuki
Positions: Left
Description: Fwd. Awd.
View Details
View Details
4
4620150G01 - Suspension: Control Arm for Suzuki Image
Control Arm
46201-50G01
Suzuki Suzuki
Positions: Right
Description: Swift. Right.
View Details
View Details
4
4620250G01 - Suspension: Control Arm for Suzuki Image
Control Arm
46202-50G01
Suzuki Suzuki
Positions: Left
Description: Swift. Left.
View Details
View Details
5
4642050G01 - Suspension: Control Arm Mount for Suzuki Image
Control Arm Mount
46420-50G01
Suzuki Suzuki
Positions: Right
Notes: PARTS: Part included with control arm.
Description: Swift.
View Details
View Details
6
4643160B00 - Suspension: Control Arm Bracket for Suzuki Image
Control Arm Bracket
46431-60B00
Suzuki Suzuki
Positions: Right
Notes: PARTS: Part included with control arm.
View Details
View Details
7
4643250G00 - Suspension: Control Arm Washer for Suzuki Image
Control Arm Washer
46432-50G00
Suzuki Suzuki
Positions: Right
Notes: PARTS: Part included with control arm.
View Details
View Details
8
4131150G10 - Suspension: Coil Spring for Suzuki Image
Coil Spring
41311-50G10
Suzuki Suzuki
Positions: Right
Description: Swift.
View Details
View Details
9
4134150G00 - Suspension: Upper Seat for Suzuki Image
Spring Seat
41341-50G00
Suzuki Suzuki
Positions: Right
Description: Swift.
View Details
View Details
10
4180050G01 - Suspension: Strut for Suzuki Image
Strut
41800-50G01
Suzuki Suzuki
Positions: Left
Description: Swift.
View Details
View Details
11
4191050G00 - Suspension: Strut Mount for Suzuki Image
Strut Mount
41910-50G00
Suzuki Suzuki
Positions: Left
Description: Swift.
View Details
View Details
12
4225150G00 - Suspension: Bumper for Suzuki Image
Stopper
42251-50G00
Suzuki Suzuki
Positions: Right
Description: Swift.
View Details
View Details
13
4194060B00 - Suspension: Cap for Suzuki Image
Cap
41940-60B00
Suzuki Suzuki
Positions: Left
Description: Swift.
View Details
View Details
14
4193160B00 - Suspension: Cover for Suzuki Image
Dust Shield
41931-60B00
Suzuki Suzuki
Positions: Left
Description: Swift.
View Details
View Details
15
4192150G00 - Suspension: Seat for Suzuki Image
Strut Seat
41921-50G00
Suzuki Suzuki
Positions: Left
Description: Lower. Swift.
View Details
View Details
16
4192250G00 - Suspension: Seat for Suzuki Image
Seat
41922-50G00
Suzuki Suzuki
Positions: Left
Description: Upper.
View Details
View Details
17
4611460B00 - Suspension: Retaining Bracket for Suzuki Image
Retaining Bracket
46114-60B00
Suzuki Suzuki
Positions: Right
Description: Brake hose.
View Details
View Details
17
4611560B00 - Suspension: Retaining Bracket for Suzuki Image
Retaining Bracket
46115-60B00
Suzuki Suzuki
Positions: Left
Description: Brake hose.
View Details
View Details
