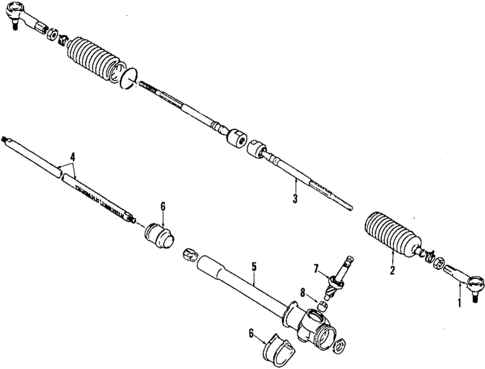

Steering Gear & Linkage for 1996 Suzuki Swift
No.
Part # / Description / Price
Price
1
Outer Tie Rod
Suzuki
Suzuki Positions: Right
Description: Esteem. Aerio. Swift. Power steering. Manual steering, 1995-97.
2
Outer Tie Rod Cover Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with outer tie rod.
Description: Power steering. Manual steering, 1995-97.
3
5
7
Bracket Suzuki
Suzuki Positions: Right
Description: Power steering. Swift. Rack side. Right. Manual steering, 1998-01. Manual steering, 1995-97.
8
Bracket Suzuki
Suzuki Positions: Left
Description: Power steering. Swift. Left. Pinion side. Manual steering, 1998-01. Manual steering, 1995-97.
9
10
Gear Assembly Mount Cushion Suzuki
Suzuki Positions: Left
Description: Power steering, to v6603871. Manual steering, 1995-97. Swift. Left.
16
No.
Part # / Description / Price
Price
1
2
Gear Assembly Mount Cushion Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in gear assembly.
Description: Swift. Right. Power steering, to v6603871. To vin #v6603871. Rack side.
3
Gear Assembly Mount Cushion Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in gear assembly.
Description: Power steering, to v6603871. Manual steering, 1995-97. Swift. Left.
4
Bracket Suzuki
Suzuki Positions: Right
Description: Power steering. Swift. Rack side. Right. Manual steering, 1998-01. Manual steering, 1995-97.
5
Bracket Suzuki
Suzuki Positions: Left
Description: Power steering. Swift. Left. Pinion side. Manual steering, 1998-01. Manual steering, 1995-97.
6
Gear Assembly Gasket Suzuki
Suzuki Notes: PARTS: Part included in gear assembly.
Description: Power steering, to v6603871.
7
O-Ring Suzuki
Suzuki Notes: PARTS: Part included in gear assembly.
Description: Power steering, to v6603871.
8
12
Inner Tie Rod Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in gear assembly.
Description: Swift. To vin #v6603871. Power steering, to v6603871.
13
Inner Tie Rod Washer Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in gear assembly.
Description: Power steering, to v6603871.
14
Tie Rod Boot Suzuki
Suzuki Positions: Left
Description: Power steering, to v6603871. Swift. To vin #v6603871.
15
Pipe Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included in gear assembly.
Description: Power steering, to v6603871.
16
Pipe Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included in gear assembly.
Description: Power steering, to v6603871.
17
18
Power Steering Pressure Line Suzuki
Suzuki Description: Swift. To vin #v6603871. Return. Power steering, to v6603871.
No.
Part # / Description / Price
Price
N/A
Power Steering Hose Suzuki
Suzuki Description: Swift. Return. Power steering, at pipe. Power steering, 1995-99.
N/A
N/A
Power Steering Pulley Suzuki
Suzuki Description: Swift. Sedan. From n5102773. Power steering, 1995-99. Power steering, 2000-01.
2
3
4
5
Gear Assembly Mount Cushion Suzuki
Suzuki Description: Swift. Right. Power steering, to v6603871. To vin #v6603871. Rack side.
6
Bracket Suzuki
Suzuki Description: Power steering. Swift. Rack side. Right. Manual steering, 1998-01. Manual steering, 1995-97.
6
Bracket Suzuki
Suzuki Description: Power steering. Swift. Left. Pinion side. Manual steering, 1998-01. Manual steering, 1995-97.
7
Power Steering Pressure Line Suzuki
Suzuki Description: Swift. To vin #v6603871. Return. Power steering, to v6603871.
No.
Part # / Description / Price
Price
5
Gear Housing Suzuki
Suzuki Notes: Include: Rack, Pinion Shaft, Bearings 1998-01 Models.
Description: Manual steering, 1995-97. Swift.
6
Gear Assembly Mount Cushion Suzuki
Suzuki Description: Power steering, to v6603871. Manual steering, 1995-97. Swift. Left.
