Home 2003 Suzuki Grand Vitara Base 2.5L V6 - Gas Radiator & Components

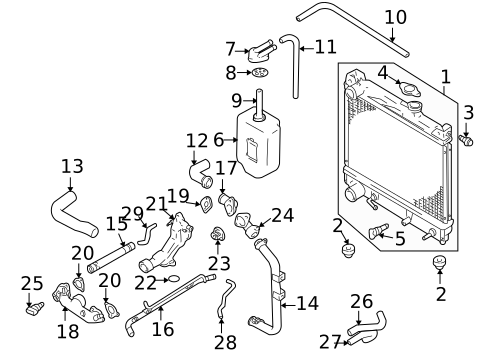

Radiator & Components for 2003 Suzuki Grand Vitara

No.

Part # / Description / Price

Price

Radiator Assembly

17700-52D01

Suzuki

Description: 2001-03, manual trans. XL-7. Grand Vitara.

View Details

Radiator Assembly

17700-52D11

Suzuki

Description: 2001-03, auto trans. XL-7. Grand Vitara.

View Details

Radiator Assembly Lower Insulator

17812-82000

Suzuki

Positions: Left

Description: 2.0L. 1.6L. 2001-03. Upper. With sport. 2004-06. 2.5L.

View Details

Radiator Assembly Bolt

02162-0625A

Suzuki

Positions: Right

Description: 2.0L. 1.6L. 2001-03. 2.5L. 1998-01.

View Details

Drain Plug

17751-61A00

Suzuki

Notes: PARTS: Part included with radiator assembly.

Description: 2.4L. 2.0L. 1.6L. 2001-03. 2.7L. Auto trans. With sport. 2004-06. 3.2L. 2.5L.

View Details

Reservoir

17931-65D00

Suzuki

Description: Vitara, Grand Vitara, XL-7. 2.0L. 1.6L. 2001-03. 2004-06. 2.5L.

View Details

Reservoir Cap

17932-60G10

Suzuki

Description: Vitara, Grand Vitara, XL-7. 2.0L. 1.6L. 2001-03. 2004-06. Without sport. 2.5L.

View Details

Reservoir Cap Seal

17933-60B00

Suzuki

Description: 2.4L. 2.0L. 1.6L. 2.7L. 2001-03. Auto trans. With sport. 2004-06. 3.2L. 2.5L.

$5.13

Hose

09352-70111-600

Suzuki

Description: Reservoir tank. 2.0L. 1.6L. 2001-03, in reservoir. With sport. 2004-06. Inside tank. 2.5L.

View Details

Hose

09352-70121-600

Suzuki

Description: 2.0L. 1.6L. 2001-03, reservoir to rad. Auto trans. 2004-06. 2.5L.

View Details

Vent Hose

17939-65D00

Suzuki

Description: 2.0L. 1.6L. 2001-03. 2004-06. 2.5L.

View Details

Inlet Pipe

17550-67D00

Suzuki

Description: 2001-03. 2.5L.

View Details

Outlet Pipe

17589-77E00

Suzuki

Description: 2001-03, water. 2.7L. 2004-06, water. 2.5L, water.

$47.61

Outlet Pipe

17880-67D10

Suzuki

Description: 2001-03, heater. 2004-06, heater. 2.5L, heater.

View Details

Cap

17571-67D00

Suzuki

Description: 2001-03, water outlet, front. 2.5L, water outlet, front.

View Details

Cap

17570-67D10

Suzuki

Description: 2001-03, water outlet, rear. 2004-06, water outlet, rear. 2.5L, water outlet, rear.

View Details

Cap Gasket

17579-67D00

Suzuki

Description: 2001-03, front. 2.7L, front. 2004-06, front. Gasket. Outlet Flange. 2.5L, front.

$10.97

Cap Gasket

17579-85FA0

Suzuki

Description: 2001-03, rear. 2.7L, rear. 2004-06, rear. 2.5L, rear.

View Details

Thermostat Housing

17690-52D00

Suzuki

Description: 2001-03. 2004-06. 2.5L.

View Details

928044008 - Cooling System: Thermostat Housing O-Ring for Suzuki Image

Water Pump O-Ring

09280-44008

Suzuki

Description: Aerio. 2.0L. 1.8L. 2.7L. 2001-03. With sport. 2004-06. 2.5L.

$7.40

Thermostat

17670-77E11

Suzuki

Description: 2.7L. 2001-03. Grand Vitara. 2004-06. Vitara. 2.5l.

$92.76

Thermostat Housing

17561-67D01

Suzuki

Description: 2.7L. 2001-03. 2004-06. 2.5L. Vitara.

View Details

Coolant Temp Sensor

13650-50G01

Suzuki

View Details

Heater Hose

17871-67D20

Suzuki

Description: 2001-03, inlet. 2.5L, inlet.

View Details

Heater Hose

17872-67D20

Suzuki

Description: 2001-03, outlet. 2.5L, outlet.

View Details

By-Pass Hose

17857-77E00

Suzuki

Positions: Right

Description: 2.7L. 2001-03. 2004-06. 2.5L.

$24.02

By-Pass Hose

17858-77E00

Suzuki

Positions: Left

Description: 2.7L. 2001-03. 2004-06. 2.5L.

$18.64

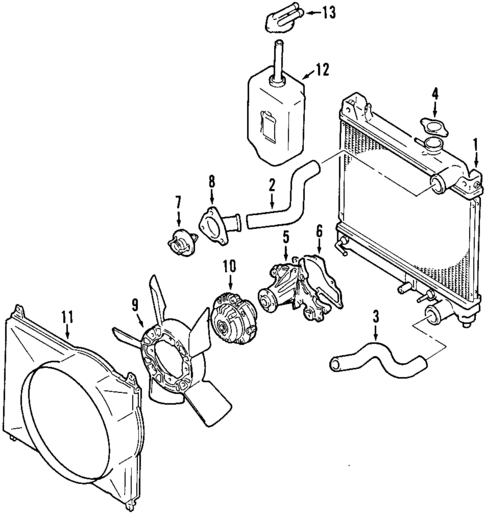

No.

Part # / Description / Price

Price

Radiator Assembly

17700-52D11

Suzuki

Description: 2001-03, auto trans. XL-7. Grand Vitara.

View Details

Radiator Assembly

17700-52D01

Suzuki

Description: 2001-03, manual trans. XL-7. Grand Vitara.

View Details

Upper Hose

17841-77E00

Suzuki

Description: Grand Vitara. XL-7. Vitara. 2.5l.

View Details

Lower Hose

17851-67D01

Suzuki

Description: Grand Vitara. XL-7. Vitara. 2.5l.

View Details

Cap

17920-75F00

Suzuki

Description: SX4. Grand Vitara. 2.4L. Aerio. Kizashi. Optional. XL-7. 2001-03.

$44.84

Water Pump

17400-85832

Suzuki

Description: Grand Vitara, XL-7. Vitara. 2.5l.

View Details

928071003 - Cooling System: Gasket for Suzuki Image

Water Pump O-Ring

09280-71003

Suzuki

Description: Grand Vitara. 2.7L. Vitara. 2.5l. 2.5L, inner.

View Details

Thermostat

17670-77E11

Suzuki

Description: 2.7L. 2001-03. Grand Vitara. 2004-06. Vitara. 2.5l.

$92.76

Thermostat Housing

17561-67D01

Suzuki

Description: 2.7L. 2001-03. 2004-06. 2.5L. Vitara.

View Details

Fan Blade

17110-65D00

Suzuki

Description: Grand Vitara. Vitara. 2.0l. XL-7. Vitara. 2.5l.

$159.74

Fan Clutch

17120-77E07

Suzuki

Description: Grand Vitara. Vitara. 2.0l. Sidekick sport. With sport. Vitara. 2.5l.

View Details

Fan Shroud

17761-52D00

Suzuki

Description: Grand Vitara. XL-7. Manual trans.

View Details

Reservoir

17931-65D00

Suzuki

Description: Vitara, Grand Vitara, XL-7. 2.0L. 1.6L. 2001-03. 2004-06. 2.5L.

View Details

Reservoir Cap

17932-60G10

Suzuki

Description: Vitara, Grand Vitara, XL-7. 2.0L. 1.6L. 2001-03. 2004-06. Without sport. 2.5L.

View Details

Related Parts

Part # / Description / Price

Price

Drain Plug O-Ring

17759-72010

Suzuki

Notes: PARTS: Part included with radiator assembly.

Description: 2.4L. 2.0L. 1.6L. 2.7L. 2001-03. Auto trans. 2004-06. 3.2L. 2.5L.

View Details
