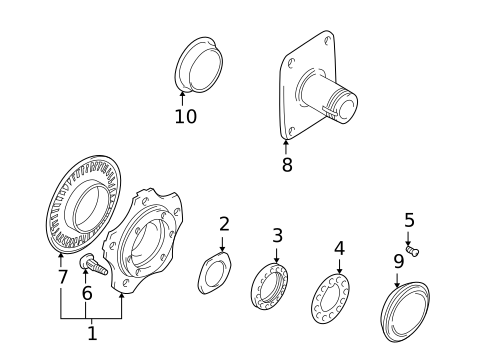

Hub Assembly for 2003 Suzuki Grand Vitara
No.
Part # / Description / Price
Price
1
Wheel Bearing And Hub Assembly
Suzuki
Suzuki Positions: Right
Description: 2 wheel drive, with abs. 2wd, 2001-05, with abs. 4wd, 2001-05, with abs. Vitara. 4 wheel drive, 2001-04, with abs.
1
Hub & Bearing Suzuki
Suzuki Positions: Right
Description: 2 wheel drive, without abs. 2wd, 2001-05, without abs. 4wd, 2001-05, without abs. 2 wheel drive, 2001-04. Vitara. 4 wheel drive, 2001-04, without abs. All.
3
Nut Suzuki
Suzuki Positions: Right
Description: All models. 2 wheel drive, 2001-04. 4wd, 2001-05. 4 wheel drive. 4wd, 1999-00. 2wd. Sidekick, X-90.
6
Hub & Bearing Washer Suzuki
Suzuki Positions: Right
Description: 4 wheel drive, spindle thrust. 4 wheel drive, 1999-00, spindle. 4wd, 2001-05, spindle thrust. 4 wheel drive, 2001-04. 4wd, 1999-00, spindle.
$8.80
$8.80
7
Hub & Bearing Snap Ring Suzuki
Suzuki Positions: Right
Description: 4wd, auto locking hub. 4 wheel drive, 1999-00. 4wd, 2001-05. 4 wheel drive, 2001-04. 4wd, 1999-00. 4wd, outer.
$6.94
$6.94
8
Wheel Stud Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with hub & bearing.
Description: Disc brake. 2wd, 2001-05. 2 wheel drive, 2001-04. 4 wheel drive, 2001-04. Fwd. Drum brakes. 4wd, 1999-00. With abs. 2wd, 1999-00. Awd.
$4.01
$4.01
9
ABS Ring Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included with hub & bearing.
Description: Front. 2 wheel drive. 2wd, 2001-05. 4wd, 2001-05. 4 wheel drive, 2001-04. Vitara.
10
Flange Suzuki
Suzuki Positions: Right
Description: 4 wheel drive, 1999-00. 4wd, 2001-05. 4 wheel drive, 2001-04.
11
15
Bearing Washer Suzuki
Suzuki Positions: Right
Description: 4 wheel drive. 4wd, 2001-05. 4wd, 1999-00, drive shaft.
16
Seal Suzuki
Suzuki Positions: Left
Description: Vitara, Grand Vitara, XL-7. 4wd. 4wd, axle. All models. 4 wheel drive, 1999-00, outer. 4 wheel drive, inner. 4 wheel drive, 2001-04, outer. 4wd, 1999-00, outer. 4wd, inner.
17
Seal Suzuki
Suzuki Positions: Left
Description: Vitara, Grand Vitara, XL-7. 4wd. All models. 4 wheel drive, 1999-00, inner. 4 wheel drive, outer. 4wd, 2001-05, outer. 4 wheel drive, 2001-04, inner. 4wd, 1999-00, inner. 4wd, drive shaft.
No.
Part # / Description / Price
Price
1
Hub & Bearing Suzuki
Suzuki Positions: Left
Description: 2 wheel drive, without abs. 2wd, 2001-05, without abs. 4wd, 2001-05, without abs. 2 wheel drive, 2001-04. Vitara. 4 wheel drive, 2001-04, without abs. All.
1
Wheel Bearing And Hub Assembly Suzuki
Suzuki Positions: Left
Description: 2 wheel drive, with abs. 2wd, 2001-05, with abs. 4wd, 2001-05, with abs. Vitara. 4 wheel drive, 2001-04, with abs.
2
Hub & Bearing Washer Suzuki
Suzuki Positions: Left
Description: All models. 4 wheel drive. 4wd, 2001-05. 2 wheel drive, 2001-04. 4wd, 1999-00. 2wd. Sidekick, X-90.
4
Hub & Bearing Lock Washer Suzuki
Suzuki Positions: Left
Description: All models. 4 wheel drive, 1999-00. 2 wheel drive, 2001-04. 4 wheel drive, 2001-04. 2wd. Sidekick, X-90. 4wd.
5
Hub & Bearing Screw Suzuki
Suzuki Positions: Right
Description: 2 wheel drive. 4 wheel drive. 2wd, 2001-05. 4wd, 2001-05.
6
Wheel Stud Suzuki
Suzuki Positions: Right
Notes: PARTS: Part included with hub & bearing.
Description: Disc brake. 2wd, 2001-05. 2 wheel drive, 2001-04. 4 wheel drive, 2001-04. Fwd. Drum brakes. 4wd, 1999-00. With abs. 2wd, 1999-00. Awd.
$4.01
$4.01
7
ABS Ring Suzuki
Suzuki Positions: Left
Notes: PARTS: Part included with hub & bearing.
Description: Front. 2 wheel drive. 2wd, 2001-05. 4wd, 2001-05. 4 wheel drive, 2001-04. Vitara.
8
Spindle Suzuki
Suzuki Positions: Left
Description: Vitara, Grand Vitara, XL-7. 2 wheel drive, 1999-00. 4 wheel drive, 1999-00. 2wd, 2001-05. 2 wheel drive, 2001-04. 2wd, 1999-00. 4wd, 1999-00. 4wd, without abs.
9
