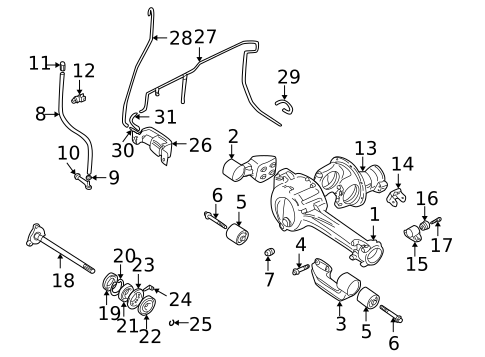

Front Axle & Carrier for 2003 Suzuki Grand Vitara
No.
Part # / Description / Price
Price
1
Axle Housing
Suzuki
Suzuki Description: 4 wheel drive, 2001-03, manual trans. XL-7. Auto trans. Grand Vitara.
2
3
Axle Housing Mount Bracket Suzuki
Suzuki Positions: Left
Description: 4 wheel drive, 2001-03. 4 wheel drive, 2004-06.
5
Axle Housing Bushing Suzuki
Suzuki Positions: Left
Description: 4wd. 4 wheel drive, 2001-03. 4 wheel drive, 2004-06.
6
$10.86
7
Plug Suzuki
Suzuki Description: 4wd. Location-Cylinder Head. Front of Head. 4 wheel drive, 2001-03, oil level. Location-Engine Block. Front of Block. Screw In. All Requred.
$12.92
$12.92
9
$3.98
19
Axle Seals Suzuki
Suzuki Positions: Right
Description: Grand Vitara. 4wd. Differential assembly. All models. 4 wheel drive, 2001-03. Differential Housing.
$24.26
$24.26
20
Drive Axle C-Clip Suzuki
Suzuki Positions: Left
Description: Differential assembly. 4wd. Awd. 4 wheel drive, 2001-03.
21
Axle Bearings Suzuki
Suzuki Positions: Left
Description: Vitara, Grand Vitara, XL-7. Differential assembly. 4wd. All models. For Intermediate Shaft. 4 wheel drive, 2001-03, outer.
22
Bearing Suzuki
Suzuki Positions: Left
Description: Grand Vitara. 4wd. Differential assembly. All models. Samurai. 4 wheel drive, 2001-03, inner. 4 wheel drive, 2004-06.
23
Bearing Adjuster Suzuki
Suzuki Positions: Right
Description: All models. Samurai. 4 wheel drive, 2001-03. XL-7.
$24.95
$24.95
25
Drive Axle Snap Ring Suzuki
Suzuki Positions: Right
Description: 4wd. 4 wheel drive, end. 4 wheel drive, 2001-03.
